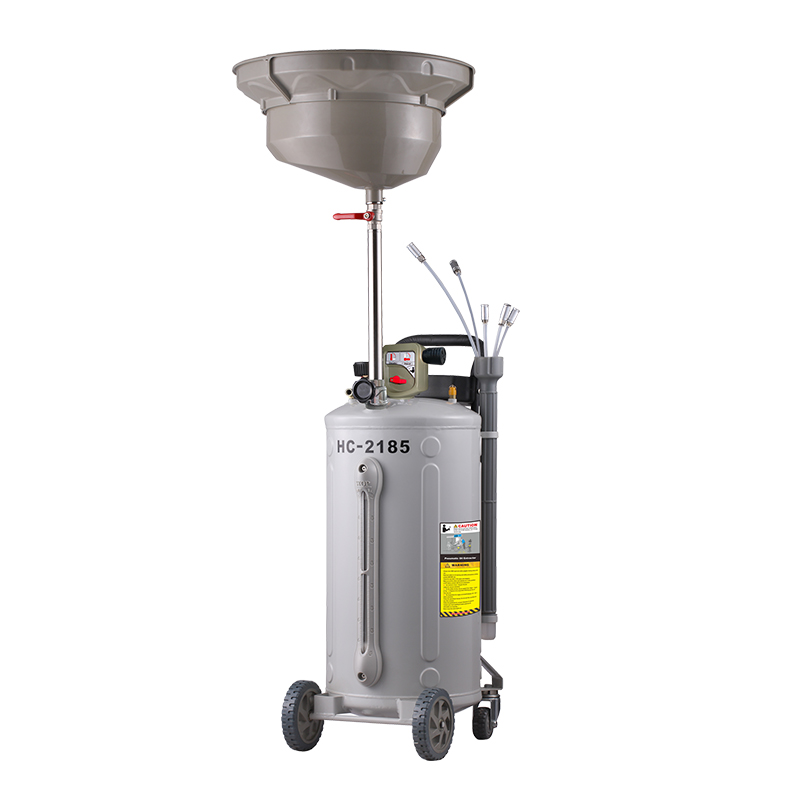

HC-2185 Pneumatic Oil Extractor

HC-2185 pneumatic oil extractor oil drain is designed with a large funnel and a 70L steel tank that quickly collects motor oil, transmission fluid, and coolant from under lift-mounted vehicles without making a mess. It has both rigid casters and swivel casters for smooth transport. This drain pan is perfect for evacuating used fluid, including motor oil, transmission fluid, and coolant.

SKU: HC-2185 Pneumatic Oil Extractor Categories: ,

Description

● High-speed vacuum extraction, capable of high negative pressure
●Use compressed air as the power source
●Various diameters of extraction probes are provided to fit the use of different cars.
●Vacuum cylinder and oil tank work at the same time, increasing oil extraction speed
●The cylinder of high-grade transparency adopted can observe and measure the oil capacity primarily.
●Height adjustable of the oil tray lift
●Applies to extraction and temporary storage of all kinds of machinery and lubricants.

Additional information

Tank capacity

70L

Collection bowl capacity

16L

Air inlet pressure

6-8Bar

Air inlet connection

1/4''

Air pressure for oil discharge

0.7-1Bar

Vacuum degree

-1~0Bar

Oil temperature range

40-60℃

Height

1150mm~1750mm

Package dimension

490*440*1000mm
