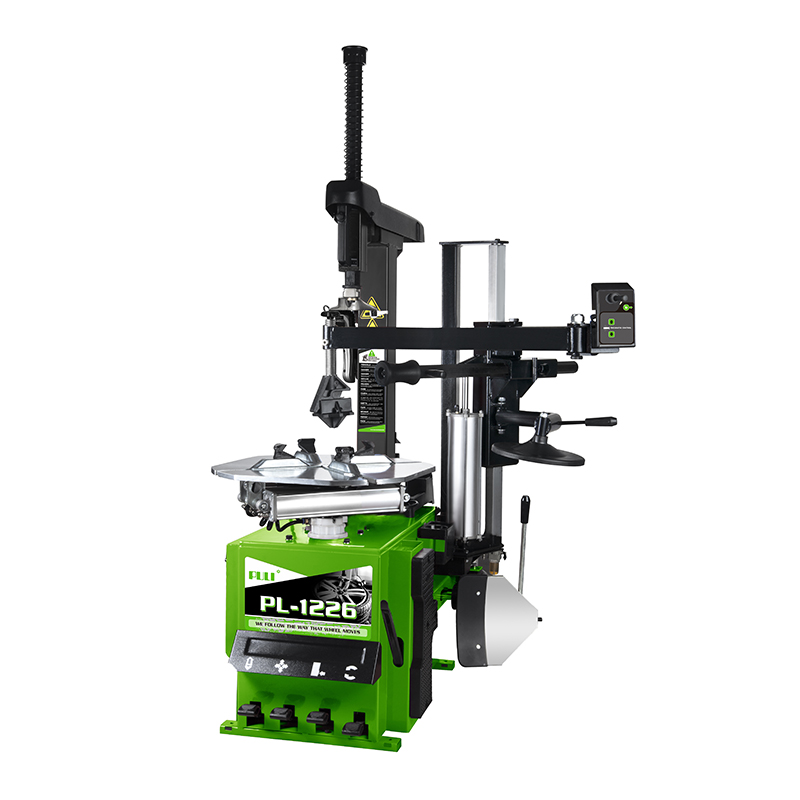

PL-1226 Semi-Automatic Tilt Back Tower Tire Changer

PL-1256 Arm Wheel Clamp Tire Changer Suitable for cars, motorcycles and light truck, BMW 7 series .The 056 arm (mounted on the right side) performs almost all the same functions as the dual arms.Semi-automatic tilt-back tire changing machine for wheels with a rim from 12″ to 24″ (max. wheel diameter 1000 mm./39″, max. wheel width 350mm./14″). Suggested for low-mid volume garages and repair shops.

SKU: PL-1226 Categories: , ,

Description

PL-1256 Arm Wheel Clamp Tire Changer Suitable for cars, motorcycles and light truck, BMW 7 series .The 056 arm (mounted on the right side) performs almost all the same functions as the dual arms.Semi-automatic tilt-back tire changing machine for wheels with a rim from 12″ to 24″ (max. wheel diameter 1000 mm./39″, max. wheel width 350mm./14″). Suggested for low-mid volume garages and repair shops.

Features:

1. 006 help arm: Ideal tool to assist in changing low profile tires, run-flat tyres, and those tires with hard side walls.

2. Tilt-back tower design. The pneumatic vertical arm automatically positions the mounting head on the rim.

3. Adopt rugged & durable one-piece casting jaws.



Additional information

External locking rim dimensions

10~21″

Internal locking rim dimensions

12~24″

Max.Wheel diameter

≤1000mm (39″)

Max.Wheel width

≤355mm (14″)

Working Pressure

8-10 bar(116-145 PSI)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

960*760*980mm (3.1*2.5*3.2ft)

N/G weight(main body)

210/234 kg (462/514.8 lbs)
