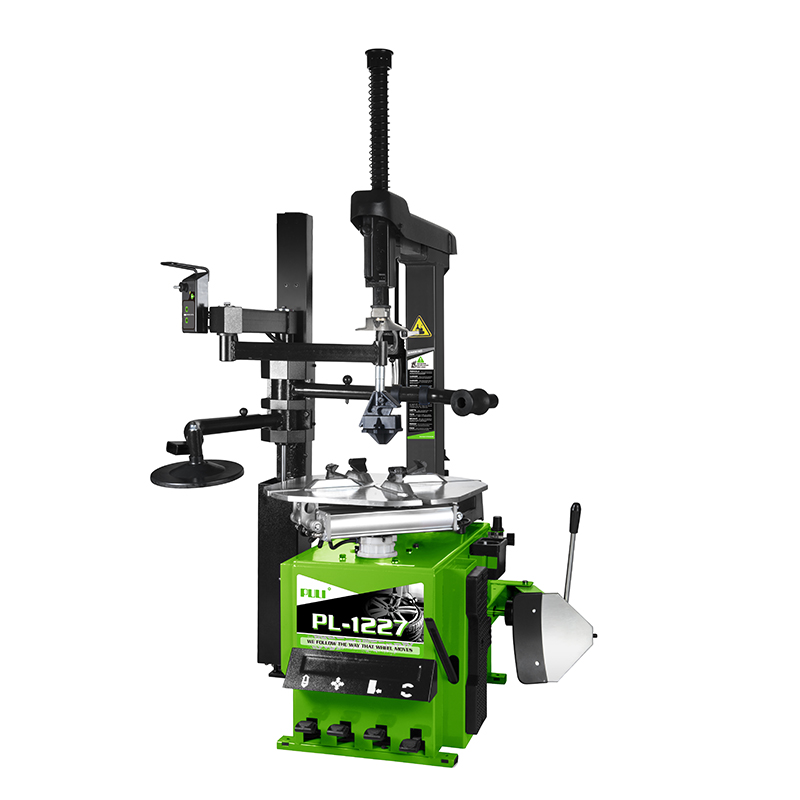

PL-1227 Semi-Automatic Tilt Back Tower Tire Changer

PL-1227 semi-Automatic tilt-back tire changer with dual assist arm for tires with a rim from 12″ to 24″ (max. wheel diameter 1000 mm./39″, max. wheel width 355mm./14″). Suggested for low-mid volume tire shops, garages, and repair shops.

SKU: PL-1227 Categories: , ,

Description

Semi-Automatic tilt back tire changer with dual assist arm for tires with a rim from 12″ to 24″ (max. wheel diameter 1000 mm./39″, max. wheel width 355mm./14″). Suggested for low-mid volume tire shops, garages and repair shops.

Features:

1. 007B help arm: Ideal tool to assist in changing low profile tires, run-flat tires and those tires with hard side walls.

2. Tilt back tower design. The pneumatic vertical arm automatically positions the mounting head on the rim.

3. Adopt rugged & durable one-piece casting jaws.

Additional information

External locking rim dimensions

10~21"

Internal locking rim dimensions

12~24"

Max.Wheel diameter

≤1000mm (39")

Max.Wheel width

≤355mm (14")

Working Pressure

8-10bar (116-145 psi)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

960*760*980mm (3.1*2.5*3.2ft)

N/G weight(main body)

210/234 kg (462/514.8 lbs)
