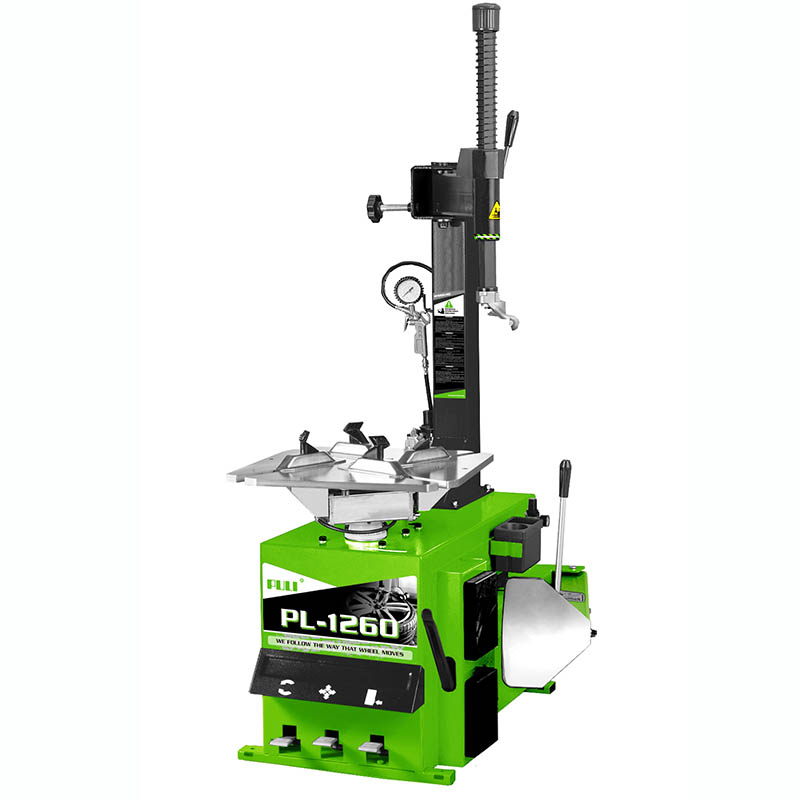

PL-1260 Semi-Automatic Swing Arm Motorcycle Tire Changer

PL-1260 semi-automatic swing arm motorcycle tire-changer, manual locking swing arm, is convenient and fast, and with the semi-automatic swing arm,Special design non- central turntable and high power motor, greatly increase work strength,Suggested for low-mid volume tire-shops, garages and repair shops.

Description

PL-1260 semi-automatic swing arm motorcycle tire-changer, manual locking swing arm, is convenient and fast, and with the semi-automatic swing arm,Special design non- central turntable and high power motor, greatly increase work strength,Suggested for low-mid volume tire-shops, garages and repair shops.

Features:

1. Manual locking swing arm, convenient and fast
2. Semi-automatic swing arm
3. Non- central Clamping jaws are totally one-step die casting
4. Special design non- central turntable and high power motor, greatly increase work strength
6. Max working clamping 22”
7. RIM CLAMPING METHOD:22” large turntable and high power motor, which increase working strength

Additional information

Inside clamping

12~22"

Outside clamping

10~19"

Max.Wheel diameter

≤1000mm (39")

Max.Wheel width

≤355mm (14")

Working Pressure

8-10bar (116-145 psi)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

960*760*950mm (3.1*2.5*3.1ft)

N/G weight(main body)

166/188 kg (365.2/413.6 lbs)
